Shri Vinayak Packaging Machine Private Limited

Product Range


Carton Sealer 3 Inch Head Top And Bottom (Hualian)

Model : SP 102 TU
We are the importers and suppliers of premium quality of Carton Sealer 3 Inch Head Top And Bottom (Hualian)

Technical Specifications:

ModelSP 102 TU
Voltage(V/Hz)200/50
Maximum Carton Size ( WxH ) mm500x600
Minimum Carton Size ( WxH ) mm140x150
Speed (m/min)20
Available Adhesive tapeBOOP, water free adhesive tape, adhesive tape
Height of Table (mm)635-780
Width of Adhesive Tape (mm)48,60,76
Size(LxWxH)mm1755x800x(960-1650)
Weight(kg)120
Air CompressorNA
Power(w)200

We welcome your enquiry & try to respond in shortest possible time

Carton Sealer 3 Inch Head Top And Bottom (Regular)

Model : SP102TU R
We are the importers and suppliers of premium quality of Carton Sealer 3 Inch Head Top And Bottom (Regular)

Technical Specifications:

ModelSP102TU R
Voltage (V/Hz)220 / 50
Maximum Carton Size ( WxH ) mm500 x 600
Minimum Carton Size ( WxH ) mm140 x 150
Speed (m/min.)18
Available Adhesive TapeBOPP, water free adhesive tape, PVC adhesive tape
Height of Table (mm)580 x 780
Width of Adhesive Tape (mm)36, 48,60
Size (LxWxH) mm1800 X 706 x(1380 - 1580)
Weight (kg)120
Air Compressor NA
Qty.01

We welcome your enquiry & try to respond in shortest possible time

Carton Sealer 2 Inch Head For Smaller Cartons Side Drive (Hualian)

Model : SP102 TU S H
We are the importers and suppliers of premium quality of Carton Sealer 2 Inch Head For Smaller Cartons Side Drive (Hualian)

Technical Specifications:

ModelSP102 TU S H
Voltage (V/Hz)220 / 50
Maximum Carton Size ( WxH ) mm500 x 500
Minimum Carton Size ( WxH ) mm100 x 100
Speed (m/min.)20
Available Adhesive TapeBOPP, water free adhesive tape, PVC adhesive tape
Height of Table (mm)580 x 780
Width of Adhesive Tape (mm)36, 48
Size (LxWxH) mm1730 X 1050 x(960 - 1550)
Weight (kg)115
Air Compressor NA
Qty.01

We welcome your enquiry & try to respond in shortest possible time

Carton Sealer 2 Inch Head For Smaller Cartons Side Drive (Hualian Economic)

Model : SP 4030 TU S HE
We are the importers and suppliers of premium quality of Carton Sealer 2 Inch Head For Smaller Cartons Side Drive (Hualian Economic)

Technical Specifications:

ModelSP 4030 TU S HE
Voltage(V/Hz)200/50
Maximum Carton Size ( LxWxH ) mm300x400
Minimum Carton Size ( LxWxH ) mm130x80x90
Speed (m/min)20
Available Adhesive tapeBOOP, water free adhesive tape, adhesive tape
Height of Table (mm)700
Width of Adhesive Tape (mm)36,48
Conveyor Loading20 Kg
Size(LxWxH)mm1305x711x(1200-1600)
Weight(kg)88

We welcome your enquiry & try to respond in shortest possible time

Carton Sealer 2 Inch Head For Smaller Cartons Side Drive (Dingye)

Model : SP102 TU SD
We are the importers and suppliers of premium quality of Carton Sealer 2 Inch Head For Smaller Cartons Side Drive (Dingye)

Technical Specifications:

ModelSP102 TU SD
Voltage (V/Hz)220 / 50
Maximum Carton Size ( WxH ) mm500 x 500
Minimum Carton Size ( WxH ) mm100 x 100
Speed (m/min.)20
Available Adhesive TapeBOPP, water free adhesive tape, PVC adhesive tape
Height of Table (mm)580 x 780
Width of Adhesive Tape (mm)36, 48
Size (LxWxH) mm1730 X 1050 x(960 - 1550)
Weight (kg)115
Air Compressor NA
Qty.01

We welcome your enquiry & try to respond in shortest possible time

Edge Carton Sealer

Model : SP 5050 J
We are the importers and suppliers of premium quality of Edge Carton Sealer

Technical Specifications:

ModelSP 5050 J
Voltage (V/Hz)AC 220/50 110/60
Power (W)850
Air Compressor (Mpa0.5~0.6
Max. Carton Size (L×W×H)(mm)500×500×500
Min. Carton Size (L×W×H)(mm)320×200×180
Speed (m/min)20 m/min(10 cartons/min)
Adhesive Tape MaterialsBOPP, PVCadhesive tape, water-free adhesive tape
Height of Table (mm)750
Width of Adhesive Tape (mm)60,76(optional)
Package Weight (kg)2.5-30
External Dimensions (L×W× H)(mm)1955×1060×1510
Net Weight (kg)400

We welcome your enquiry & try to respond in shortest possible time

Carton Sealer For Led TV Box (Chali Taiwan)

Model : SPCX1 (For LED TV Box)
We are the importers and suppliers of premium quality of Carton Sealer For Led TV Box (Chali Taiwan)

Technical Specifications:

ModelSPCX1 (For LED TV Box)
Power Supply :1 Phase 110V/220V/240V
Packing Size :Max.: L 2000x W250 x H1000 mm
Tape Width :50 mm (2") or 76 mm (3")
Working Table Height :570~770 mm (Adjustable)
Sealing Capacity :20 Cartons per minute
(Carton: L500 mm, Power: 60 HZ)
Dimensions :L1052 x W755 x H1930* mm
(without optional extensive working table)
Net Weight :133 Kg

We welcome your enquiry & try to respond in shortest possible time

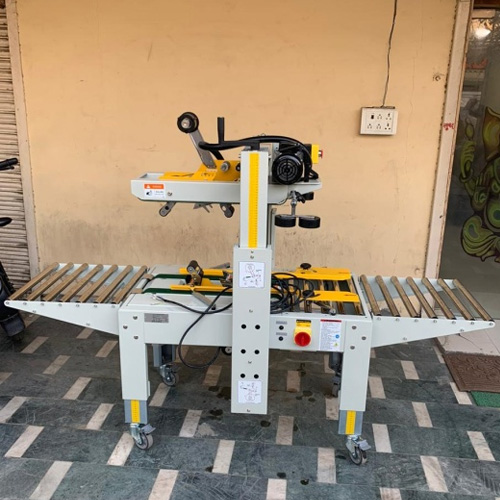

Carton Sealer Without In-Out Conveyor (Chali Taiwan)

Model : SP 102 TU (Standard Carton)
We are the importers and suppliers of premium quality of Carton Sealer Without In-Out Conveyor (Chali Taiwan)

Technical Specifications:

ModelSP 102 TU (Standard Carton)
Power Supply :1 Phase 110V/220V/240V
Packing Size :Max.: L∞ x W500 x H500 mm
Min.: L150 x W170 x H110 mm
Tape Width :50 mm (2") or 76 mm (3")
Working Table Height :570~770 mm (Adjustable)
Sealing Capacity :20 Cartons per minute
(Carton: L500 mm, Power: 60 HZ)
Dimensions :L1052 x W755 x H1430 mm
(without optional extensive working table)
Net Weight :133 Kg

We welcome your enquiry & try to respond in shortest possible time
